Universal Indicators SQ-Led B-Lux in Pair | (Choose Color)

thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
ece
€94,90
✔ Shipped in 5-10 business days
View product information >
  • Ordered before 16:00, shipped today (working days)
  • Support from motorcycle enthousiasts
  • 30-day cooling-off period, easy returns
  • Customers give us a 9.2/10
CafeRacerWebshop.com | Your One-Stop-Cafe Racer Parts Shop with a 9.2 Score logo
We are here for you!
Ask your question >
Productinformatie
Artikelcode: 98-4739
EAN-code: 7423544928969
  • SQ-Led uses Sequential Led technology and is an all-purpose, E-marked indicator made of aluminium.
  • They stand for the Finest Barracuda has to offer.
  • They are a part of the B-LUX collection from the Barracuda Luxury Project. SQ-Leds are distinguished by unique and refined lines, attractive finishes, a futuristic style, and smaller proportions.

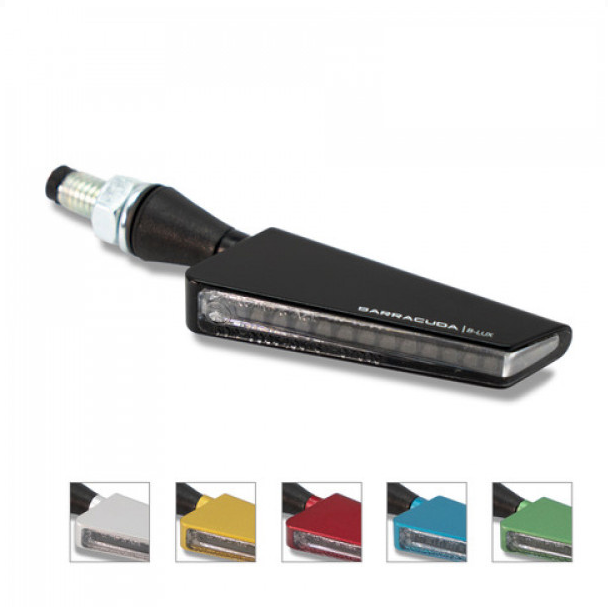

  • They come in six different colours: Red, Black, Silver, Gold, Green, and Blue.
  • The SQ-Led B-Lux is offered in pairs.
  • All market motorcycles can use the Barracuda Led Indicators because they are Universal, E-Marked, and interoperable.
  • Each bike has a unique mechanism that requires some level of adaptation:
  • Motorcycles using a 6-watt system must modify the operation and flashing of 10-watt Resistors (1 resistor X 2 Indicators / per side), or else use a compatible RELAY.
  • Adjust the operation and flashing of 10-watt Resistors(x1res. X 1 Indicator) or alternatively, a suitable RELAY, on motorcycles with a 10-watt system.
  • In order to change the flashing and operation on motorcycles with a 21 watt system, 21 watt Heating Elements (1 res. X 2 Indicators/per side) are required.
  • A technical investigation is needed for motorcycles with the original Led system to determine what is required for operation (resistance or Relay).
  • These model based to 99% of the motorcycles on the market in general.
  • Additionally, some motorcycle models have technical peculiarities that require the evaluation of special electronic adapters on an individual basis. For regular functioning, we advise seeking competent technical help.
  • To finish the AD Hoc Installation, we recommend contacting the Technical Sheet for your motorcycle to determine whether or not related goods like the Arrow Adapter are
  • compatible (necessary for mounting the indicators on the motorcycle structure).
  • Resistance(see above) (see above).
  • Adapters for Cable (necessary for connecting the indicators to the original system without the need to make changes to the original cables or connectors).

Fits to: Universal - Indicators

Barracuda Part number: N1001-BSQN, N1001-BSQR, N1001-BSQV, N1001-BSQA
