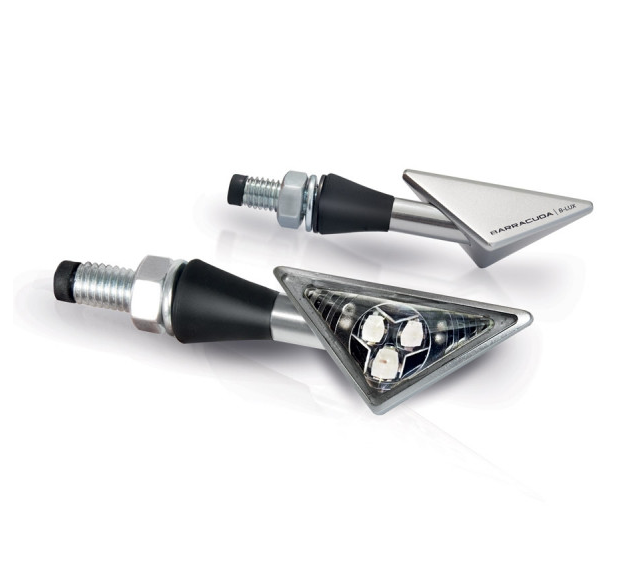

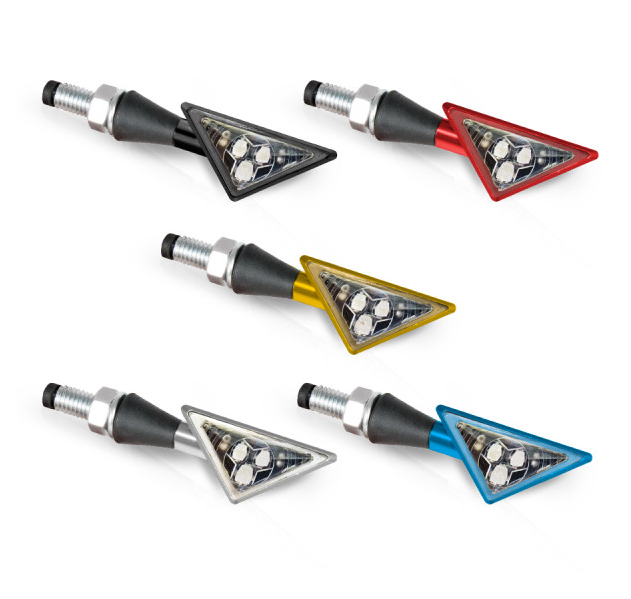

The top tier of E-marked led indicators that BARRACUDA offers are represented by Z-LED. They are made of aluminium and are a component of the B-LUX ALUMINUM LUXURY PROJECT. They are distinguished by unique and elegant finishing details, a new, futuristic design, and tiny size. Five alternative anodization colours are available for Z-LEDs: BLACK, RED, SILVER, GOLD, and BLUE.All market motorcycles can use the BARRACUDA LED INDICATORS because they are UNIVERSAL, E-MARKED, and interoperable.Each bike has a unique mechanism that requires some level of adaptation:

Fits to: Universal - Indicators

• Motorcycles using a 6-watt system must modify the operation and flashing of 10-watt RESISTORS (1 resistor X 2 Indicators / per side), or else use a compatible RELAY.
• Adjust the operation and flashing of 10-watt RESISTORS (x1res. X 1 Indicator) or alternatively, a suitable RELAY, on motorcycles with a 10-watt system.
• In order to change the flashing and operation on motorcycles with a 21 watt system, 21 watt HEATING ELEMENTS (1 res. X 2 Indicators/per side) are required.
• A technical investigation is needed for motorcycles with the original LED system to determine what is required for operation (resistance or RELAY).
• These factors apply to 99% of the motorcycles on the market in general.
• Additionally, some motorcycle models have technical peculiarities that necessitate the evaluation of special electronic adapters on an individual basis. For regular functioning, we advise seeking competent technical assistance.
• We encourage you to refer to the TECHNICAL SHEET for your motorcycle in order to finish the AD HOC INSTALLATION to determine the compatibility of associated items like.
• ADAPTER FOR ROWS (necessary for mounting the indicators on the motorcycle structure).
• RESISTANCE (see above) (see above).
• ADAPTERS FOR CABLE (necessary for connecting the indicators to the original system without the need to make changes to the original cables or connectors).

Barracuda Part number: N1001/BZN, N1001/BZA, N1001/BZO, N1001/BZR, N1001/BZU
