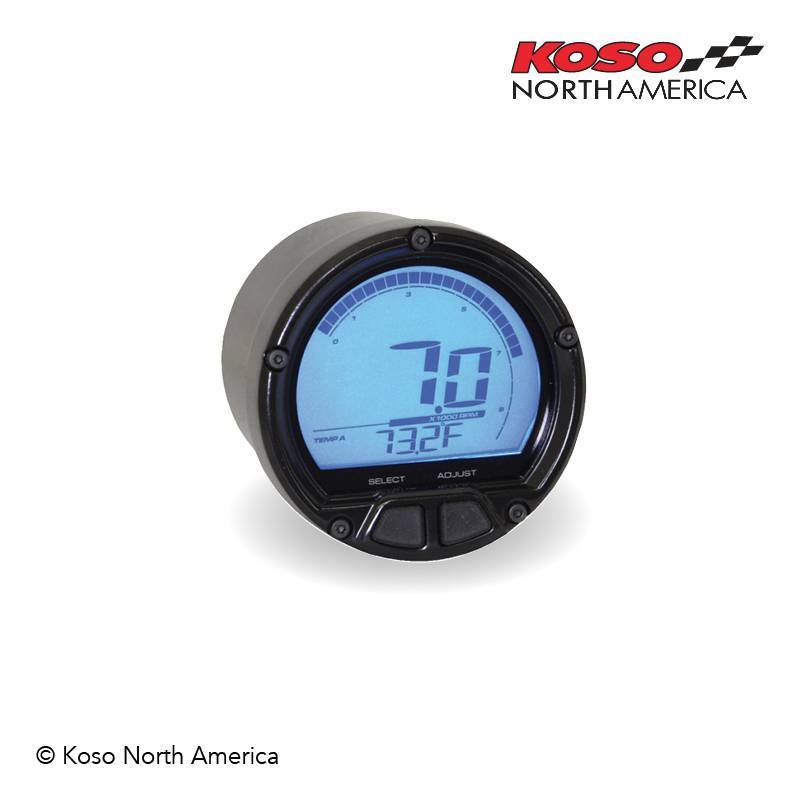

D55 DL-02R Tachometer/Thermometer (LCD Display, 20,000 RPM)
The DL-02R tachometer has been developed with the latest technology. Its unique casing allows the adjust buttons to be right in the front. This makes the DL-02R a very convenient instrument to adjust. The big digits and blue backlight make the DL-02R a very easy meter to read even at night. Available in black and chrome casing.
| Digital Tachometer | Display range: 0-20000 RPM Display unit: 100 RPM Bar: clockwise |
| Display internal | <0.5 seconds |
| Tachometer level | Display range 0-10,000 / 15,000 / 20,000 RPM for alternative: Display range: 0 - 10,000 RPM 30 segment bar graph Display unit: 333 RPM for each segment Display range: 0 - 15,000 RPM, 60 segment bar graph Display unit: 500 RPM for each segment Display range: 0 - 20,000 RPM 60 segment bar graph Display unit: 666 RPM for each segment |
| Stroke / piston setting | 2 Stroke: 1, 2, 3, 4 pistons 4 Stroke: 1, 2. 3. 4, 5, 6, 8, 10, 12, pistons |
| Thermometer | Display range: 0-250°C (32 - 482°F) Display unit: 0,1°C (°F) |
| Clock | 24h |
| Supply voltage | DC 12V |
| Effective temperature range | -10 - +60°C |
| Standard | JIS D 0203 S2 |
| Meter size | D55 x 48,4 mm |
