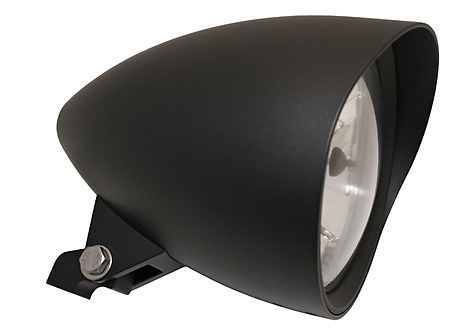

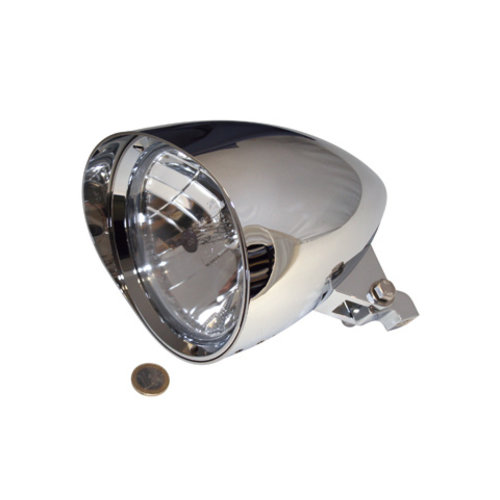

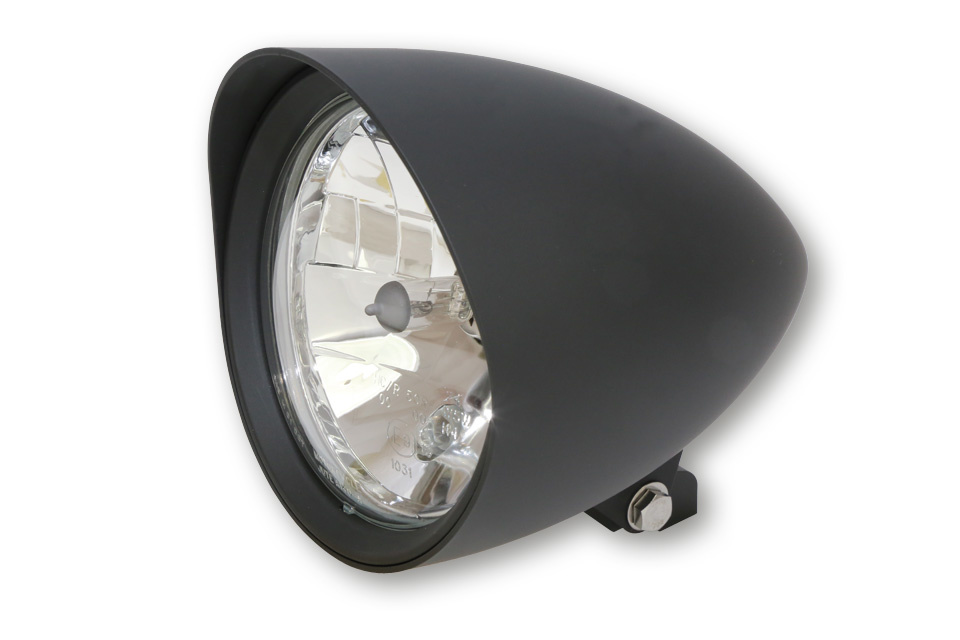

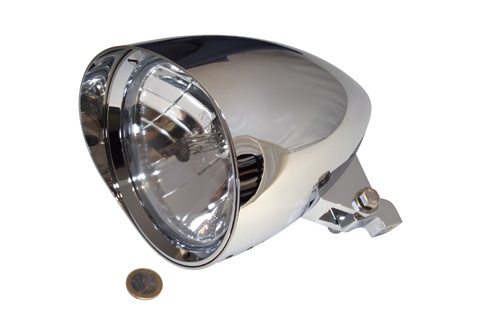

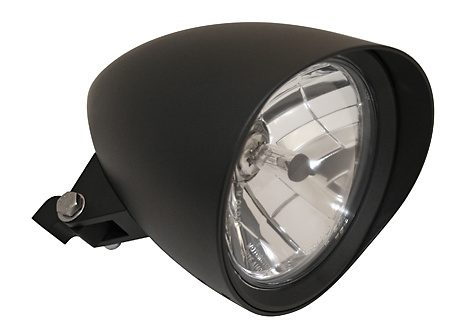

HIGHSIDER 5 3/4 inch headlight CLASSIC 1 with umbrella for lower mounting
H4-halogen headlight in a high quality black or chrome plated aluminum housing in retro look with nostalgic umbrella (length: approx. 25 mm). The headlamp has an asymmetric prismatic reflector - only approved for right-hand traffic - and parking light, E-approved.
Sensational Give your bike an unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight!
Technical Specifications:
Lamps: H4, 12 V 60/55 W
Fixing: bottomdiameter: 157 mm
Depth: 220 mm
Holder in the middle Fixing screw to the front: 127 mm
Holder in-between: 18 mm
Fixing: bottom
Connections:
White cable = dipped beam (+)
Green cable = mass of H4 bulb
Blue cable = main beam (+)
Brown cable = parking light (+)
Black cable = mass of parking light (-)
Scope supplied: 1 piece, consisting of headlight and bulb
Notes:
Asymmetrical reflector - approved for right-hand traffic only
Specs:
Shape | round |
Lens | clear |
Homologation | E-approved |
Illuminant | H4 |
Material | Aluminium |
Brand | HIGHSIDER |
Fits on:
Manufacturer | Model | Built from | Built to |
Victory | Boardwalk 1800 - 65 KW | 2013 | 2013 |
Victory | Boardwalk 1800 - 65 KW | 2014 | 2014 |
Victory | Boardwalk 1800 - 65 KW | 2015 | 2015 |
Victory | Gunner 1800 - 65 KW | 2015 | 2015 |
Victory | Gunner 1800 - 65 KW | 2016 | 2016 |
Victory | Gunner 1800 - 70 KW | 2017 | 2017 |
Victory | Hammer 1800 - 65 KW | 2008 | 2008 |
Victory | Hammer 1800 - 65 KW | 2009 | 2009 |
Victory | Hammer 1800 - 65 KW | 2010 | 2010 |
Victory | Hammer 1800 - 65 KW | 2011 | 2011 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2010 | 2010 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2011 | 2011 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2012 | 2012 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2013 | 2013 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2014 | 2014 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2015 | 2015 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2016 | 2016 |
Victory | Hammer 1800 Eight Ball - 65 KW | 2017 | 2017 |
Victory | Hammer 1800 S - 65 KW | 2009 | 2009 |
Victory | Hammer 1800 S - 65 KW | 2010 | 2010 |
Victory | Hammer 1800 S - 65 KW | 2011 | 2011 |
Victory | Hammer 1800 S - 65 KW | 2012 | 2012 |
Victory | Hammer 1800 S - 65 KW | 2013 | 2013 |
Victory | Hammer 1800 S - 65 KW | 2014 | 2014 |
Victory | Hammer 1800 S - 65 KW | 2015 | 2015 |
Victory | Hammer 1800 S - 65 KW | 2016 | 2016 |
Victory | Hammer 1800 S - 65 KW | 2017 | 2017 |
Victory | Judge 1800 - 65 KW | 2013 | 2013 |
Victory | Judge 1800 - 65 KW | 2014 | 2014 |
Victory | Judge 1800 - 65 KW | 2015 | 2015 |
Victory | Judge 1800 - 65 KW | 2016 | 2016 |
Victory | Judge 1800 - 65 KW | 2017 | 2017 |
Victory | Kingpin 1634 Eight Ball | 2010 | 2010 |
Victory | Kingpin 1634 Low | 2009 | 2009 |
Victory | Kingpin 1634 Tour | 2008 | 2008 |
Victory | Kingpin 1634 Tour | 2009 | 2009 |
Victory | Kingpin 1800 - 66 KW | 2008 | 2008 |
Victory | Kingpin 1800 - 66 KW | 2009 | 2009 |
Victory | Kingpin 1800 - 66 KW | 2010 | 2010 |
Victory | Kingpin 1800 - 66 KW | 2011 | 2011 |
Victory | Vegas 1631 | 2008 | 2008 |
Victory | Vegas 1631 | 2009 | 2009 |
Victory | Vegas 1631 | 2010 | 2010 |
Victory | Vegas 1631 Low | 2008 | 2008 |
Victory | Vegas 1631 Low | 2009 | 2009 |
Victory | Vegas 1631 Low | 2010 | 2010 |
Victory | Vegas 1631 Zach Ness | 2008 | 2008 |
Victory | Vegas 1631 Zach Ness | 2009 | 2009 |
Victory | Vegas 1631 Zach Ness | 2010 | 2010 |
Victory | Vegas 1631 Zach Ness | 2011 | 2011 |
Victory | Vegas 1631 Zach Ness | 2012 | 2012 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2008 | 2008 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2009 | 2009 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2010 | 2010 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2011 | 2011 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2012 | 2012 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2013 | 2013 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2014 | 2014 |
Victory | Vegas 1634 Eight Ball - 65 KW | 2015 | 2015 |
Victory | Vegas 1634 Jackpot | 2008 | 2008 |
Victory | Vegas 1634 Jackpot | 2009 | 2009 |
Victory | Vegas 1800 - 66 KW | 2010 | 2010 |
Victory | Vegas 1800 - 70 KW | 2011 | 2011 |
Victory | Vegas 1800 - 70 KW | 2012 | 2012 |
Victory | Vegas 1800 - 70 KW | 2013 | 2013 |
Victory | Vegas 1800 - 70 KW | 2014 | 2014 |
Victory | Vegas 1800 - 70 KW | 2015 | 2015 |
Victory | Vegas 1800 - 70 KW | 2016 | 2016 |
Victory | Vegas 1800 Eight Ball | 2017 | 2017 |
Victory | Vegas 1800 Eight Ball - 65 KW | 2015 | 2015 |
Victory | Vegas 1800 Eight Ball - 65 KW | 2016 | 2016 |
Victory | Vegas 1800 Eight Ball - 66 KW | 2010 | 2010 |
Victory | Vegas 1800 Eight Ball - 66 KW | 2014 | 2014 |
Victory | Vegas 1800 Eight Ball - 70 KW | 2011 | 2011 |
Victory | Vegas 1800 Eight Ball - 70 KW | 2012 | 2012 |
Victory | Vegas 1800 Eight Ball - 70 KW | 2013 | 2013 |
Victory | Vegas 1800 High Ball - 65 KW | 2012 | 2012 |
Victory | Vegas 1800 High Ball - 65 KW | 2013 | 2013 |
Victory | Vegas 1800 High Ball - 65 KW | 2015 | 2015 |
Victory | Vegas 1800 High Ball - 66 KW | 2014 | 2014 |
Victory | Vegas 1800 Jackpot - 66 KW | 2010 | 2010 |
Victory | Vegas 1800 Jackpot - 66 KW | 2014 | 2014 |
Victory | Vegas 1800 Jackpot - 70 KW | 2011 | 2011 |
Victory | Vegas 1800 Jackpot - 70 KW | 2012 | 2012 |
Victory | Vegas 1800 Jackpot - 70 KW | 2013 | 2013 |
Victory | Vegas 1800 Jackpot - 72 KW | 2009 | 2009 |
