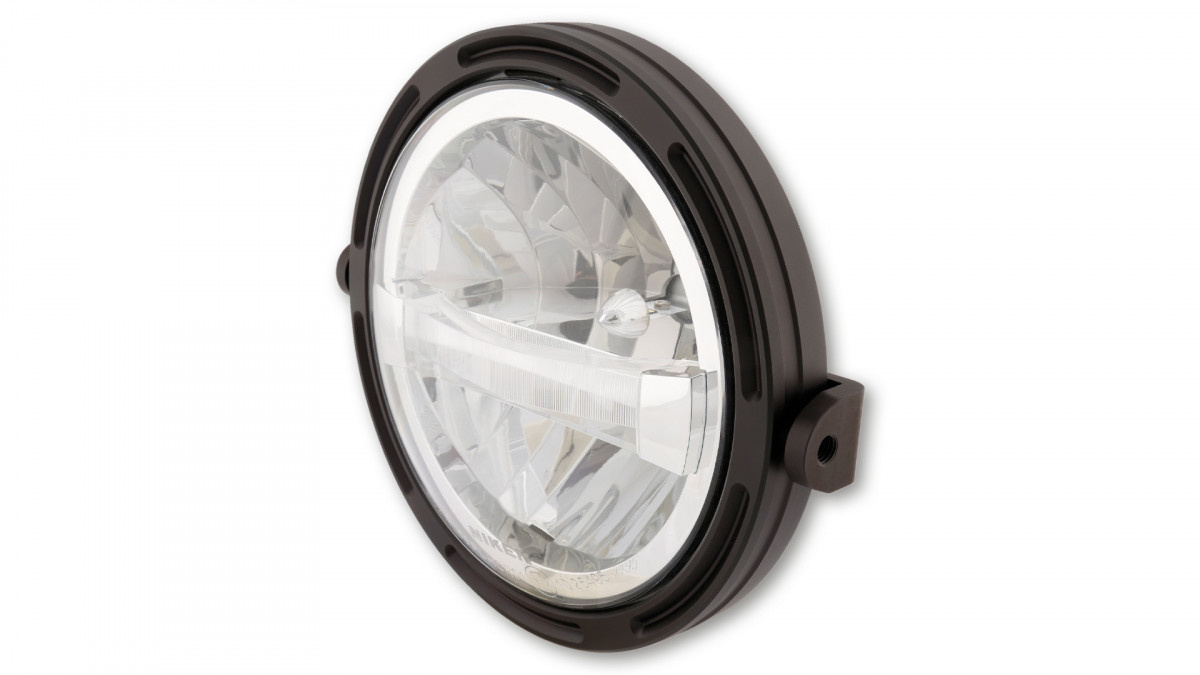

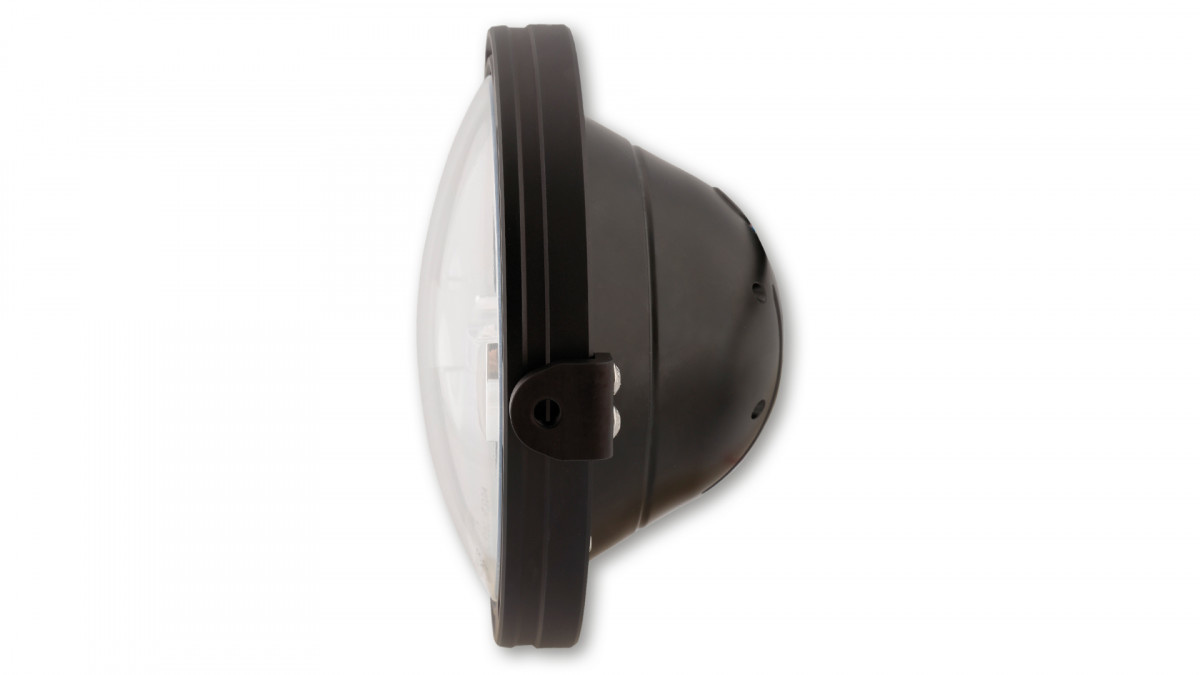

Highsider LED main headlight FRAME-R1 TYPE 4, E-approved
- Mounting WITHOUT housing

Every centimetre counts to place the headlight as narrowly as possible between the two standpipes in the fork. REDUCED TO THE MAX was the premise for the development of the innovative headlamp mount Frame. With the puristic aluminium ring it is possible for the first time to mount different LED headlight inserts free-standing on the motorcycle. The deliberate omission of a headlamp housing enables an unbeatably narrow installation position and also provides better cooling of the LED unit.

In many motorcycles the H4 or H7 lamp shines, which more or less sparkles. Seeing better usually also means being seen better at the same time, not unimportant when the summer tends towards autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether you want to replace it for better visibility at night, better recognition during the day, or to give your motorcycle a more beautiful look, if you are looking for a stylish and innovative power headlight, the FRAME-R1 LED headlight is an excellent choice.

For variable mounting of the headlamp two different mounting systems are available.
- Side Mount, the conventional screw connection at the side of the lamp holder
- Bottom Mount, attachment at the bottom for screw connection to the fork bridge

The Side-Mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.

features:
- Round 7-inch headlight with CNC mounting ring and mounting kit
- Mounting WITHOUT a headlight housing
- Improves cooling
- Many installation possibilities
- Flat mounting
- Modern optics, stylishly innovative
- Clear glass
- Chrome-plated reflector
- High beam, low beam Parking and daytime running light function
- Daytime running and position light installed in a central strip
- Low beam light shines above the strip, the high beam light shines accordingly below
- Asymmetrical luminous flux
- E-tested

Give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series makes your bike a highlight in any case!

dimensions:
A diameter = 200 mm
GA diameter = 168 mm
I diameter = 160 mm
T = 61 mm
R = 10 mm

connections:
Black cable = ground (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at 12V: 1,3A, 13W
Black cable = ground (-)

TFL:
Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Delivery includes: 1 piece

Notes:
Application asymmetrical, approved for right-hand traffic only
