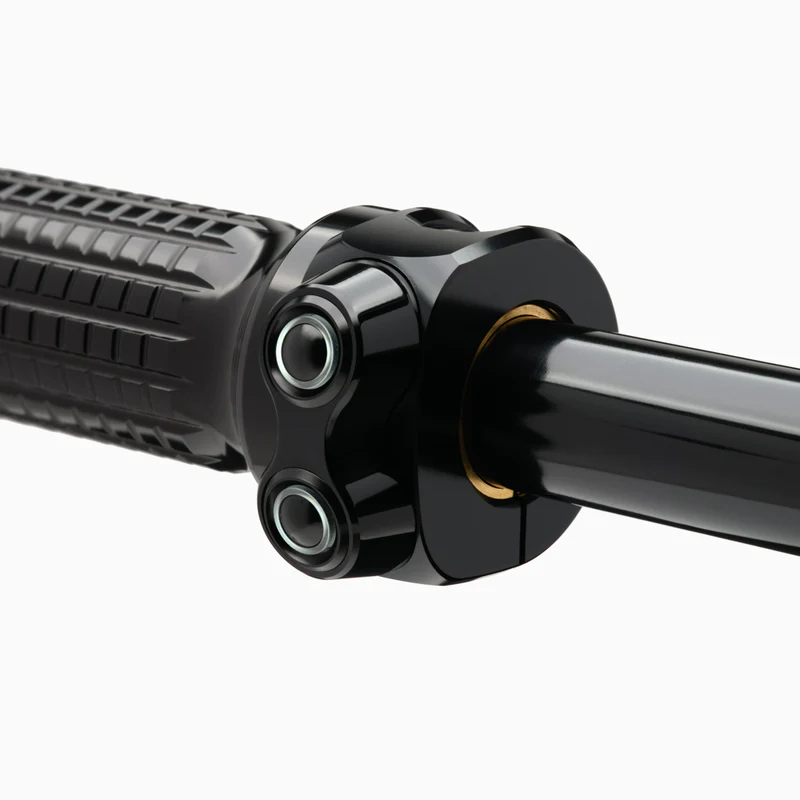

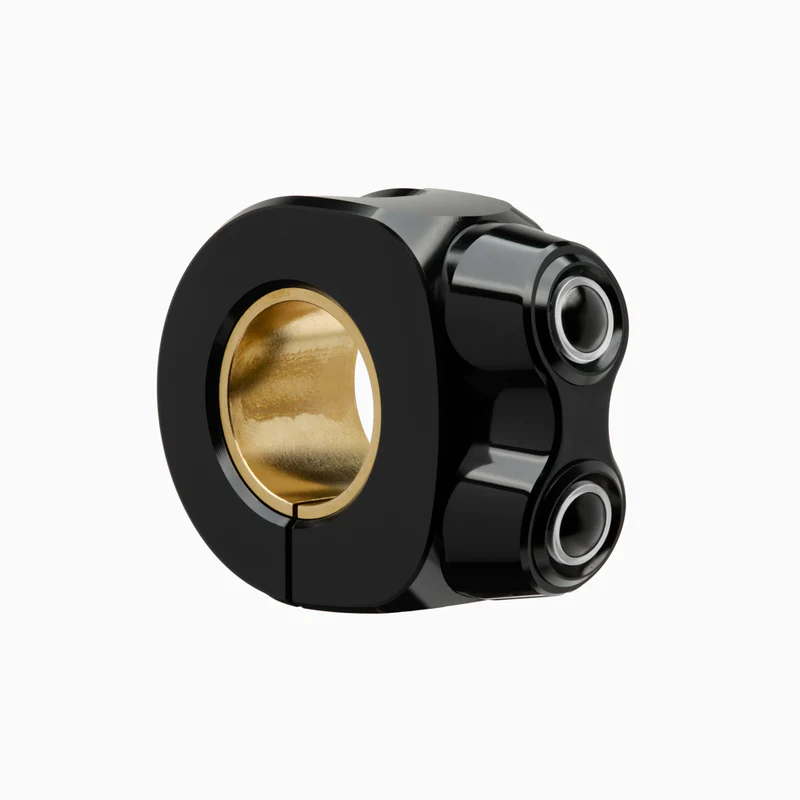

The mo.switch basic LED is a high-quality, universal pushbutton fitting with a straightforward, beautiful design that fits handlebars with a tube diameter of 1 inch or 22 mm (7/8 inch). These CNC-manufactured pushbutton fittings may switch any electrical equipment, including lights, turn signals, e-starters, horns, and much more, when used in combination with an electronic pushbutton control (not included).
The housing is gloss black anodized after being CNC machined from billet metal.

Each pushbutton is of excellent quality, extremely durable, and IP65-protected against vibration and splash water.

Their ergonomic pressure point (light, mechanical detent) and appropriate size allow for a safe switching experience even when wearing gloves.

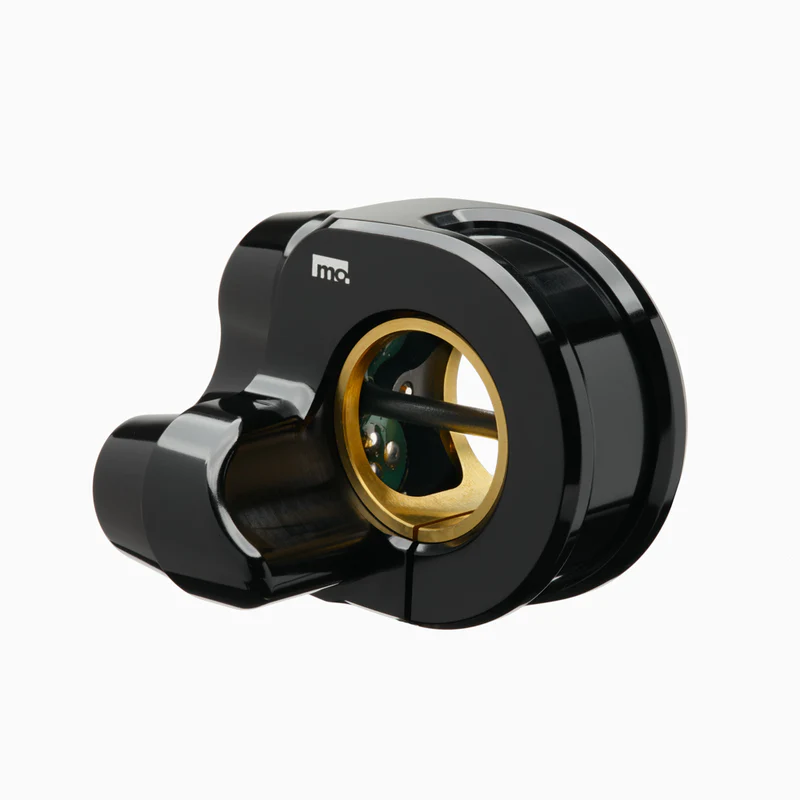

It is simple to create a one-wire or two-wire circuit since each pushbutton has two connections. For the one-wire circuit, there is already an internal ground connection. Thus, routing cables within the handlebar is a simple task.

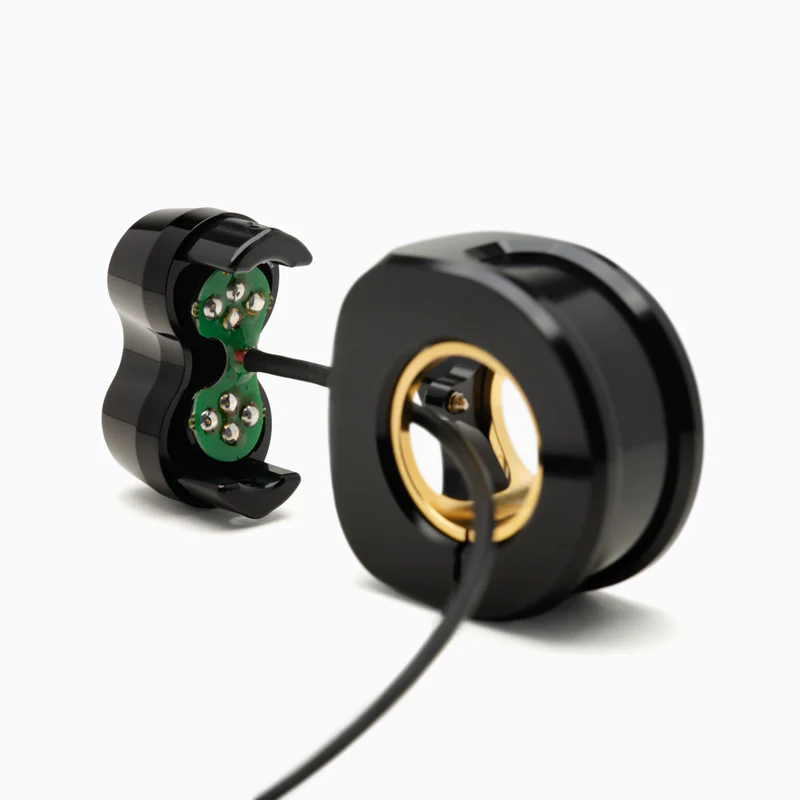

The probes are interchangeable and accessible separately in case of any damage.

• Inner diameter: 22 mm and 1 inch
• Outer diameter housing: approx. 45 mm

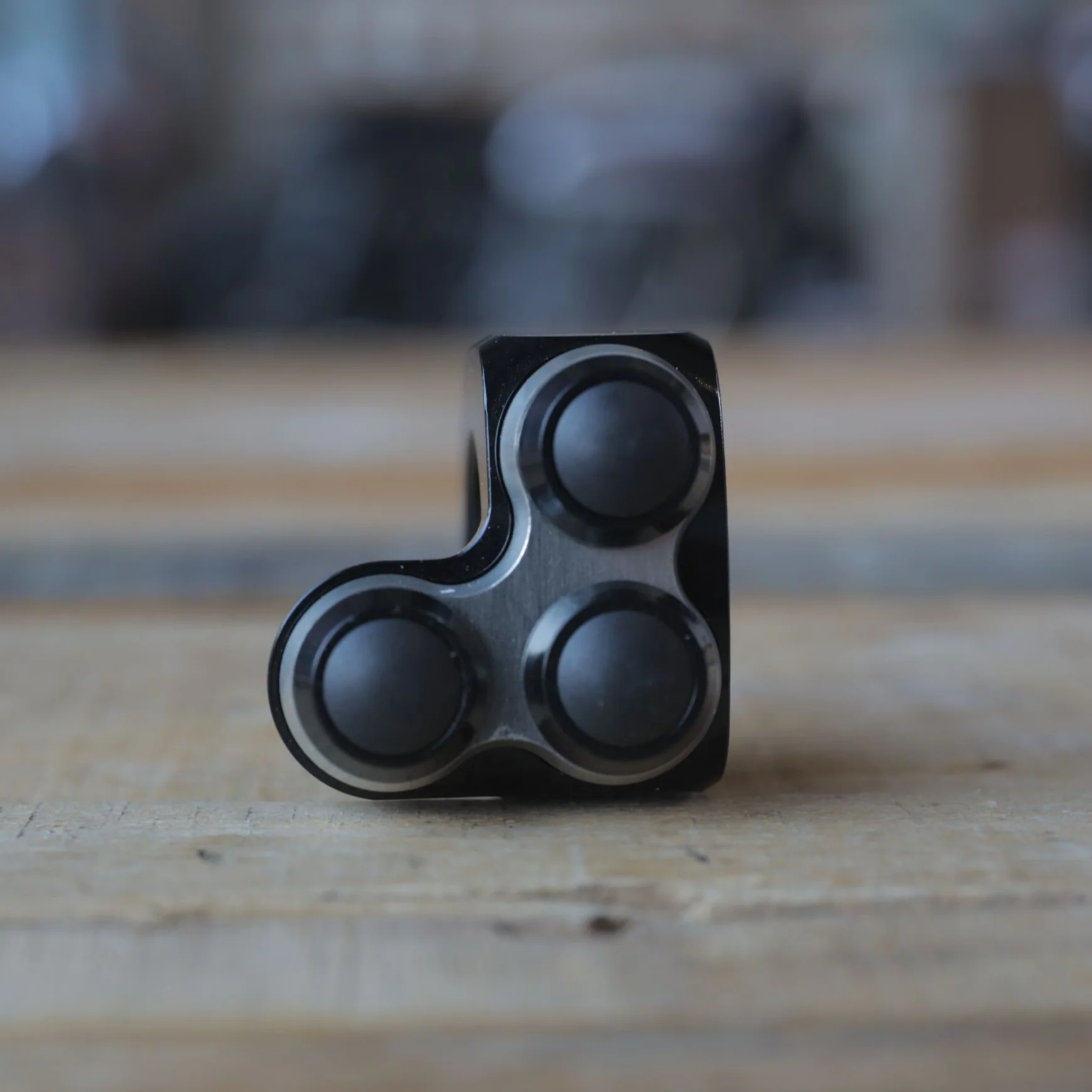

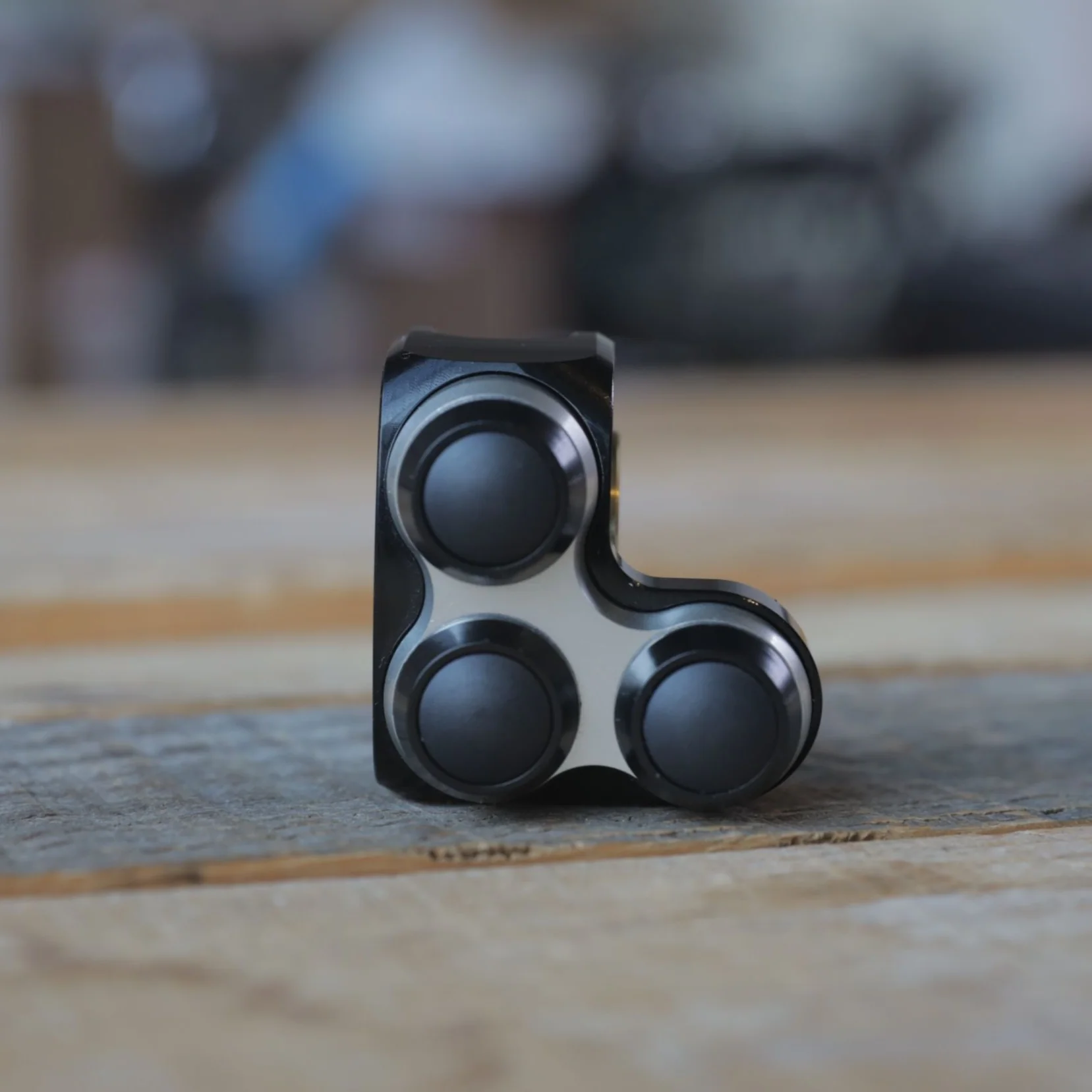

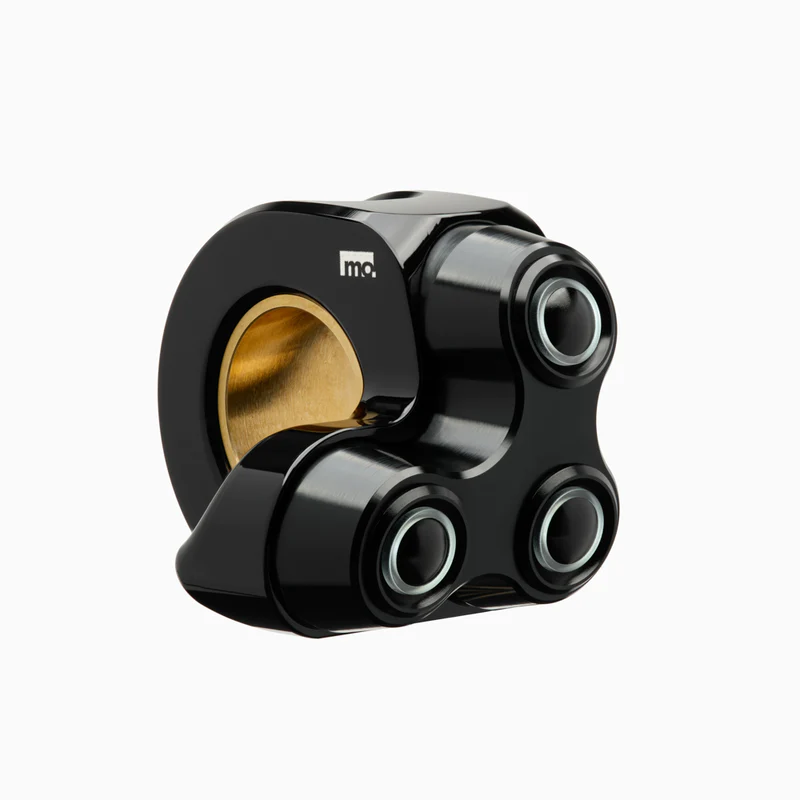

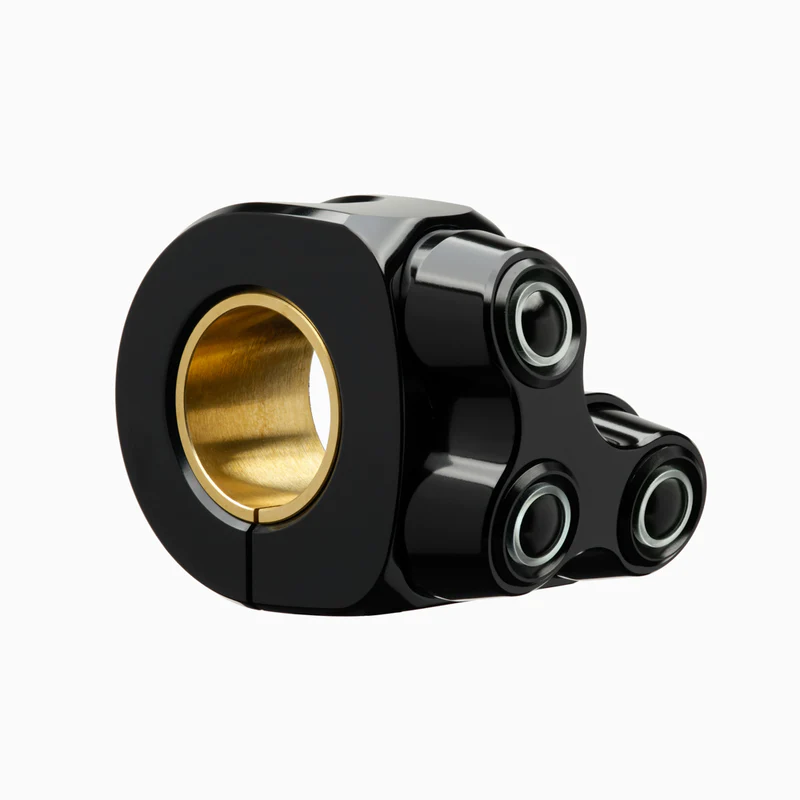

• Width: 2 styli 22 mm, 3 styli 42.5 mm
• Pushbutton completely wired
• high quality connection cable with 1,8m length
• LED illuminated buttons
• high quality CNC milled from solid material and anodized UV resistant
• Housing color black, button black, button LED color white
• maximum pushbutton switching current: 1A, all pushbuttons switch to ground
• additional switching electronics mo.unit required

  Additional Info :
  4004033 : 2 Buttons-Black-Universal
  4004037 : 3 Buttons-Black-Left
  4004036 : 3 Buttons-Black-Right
  4004037 : 3 Buttons-Silver-Left
  4004038 : 3 Buttons-Silver-Right

  Download Here the Manual
