Multi Flasher relay - PLUS

thubmnail
thubmnail
€52,95
✔ Shipped in 3-5 business days
View product information >
  • Ordered before 16:00, shipped today (working days)
  • Support from motorcycle enthousiasts
  • 30-day cooling-off period, easy returns
  • Customers give us a 9.2/10
CafeRacerWebshop.com | Your One-Stop-Cafe Racer Parts Shop with a 9.2 Score logo
We are here for you!
Ask your question >
Productinformatie
Artikelcode: 31-0260
EAN-code: 7440823344395

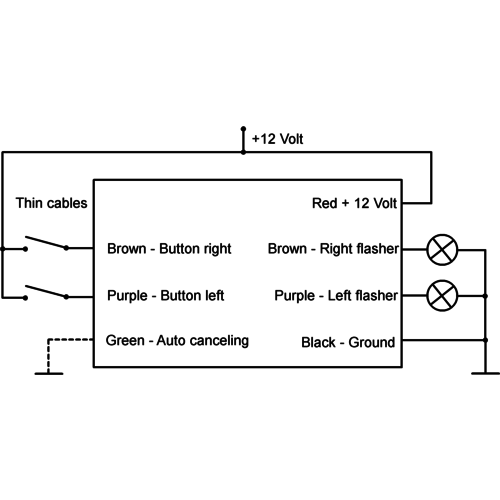

This is a small flasher controller for push-buttons in a small package that will fit in every handlebar. This device is controlled via 12 Volt inputs, what make it easier to implement in an existing OEM harness if no minimal wiring is required. An auto-cancel function can be activated. It switches off the indicators after a while if no button is being pushed.

Dimensions:38 mm  x 16 mm x 11 mm
Maximum current:Maximum 7mA mikrokontroller, 2 x 5 Ampere outputs
Housing:Black abs housing
Input voltage range:7 - 18 Volt
Connections:Control 0,5mm², Power side 1 mm², je 10 cm
Maximum ambience temperature:80 Grad Celsius
Maximum current:5 Ampere, short circuit protected. (15 Ampere)
Read more
Reviews
5
(1 reviews)
0
0
0
0
0
Notify me when is back in stock
Laat je e-mailadres achter en we sturen je een mailtje wanneer dit product weer op voorraad is.

Almost yours!

Multi Flasher relay  - PLUS
Axel Joost Elektronik

Multi Flasher relay - PLUS

Order for another and get free shipping!
Add your review
