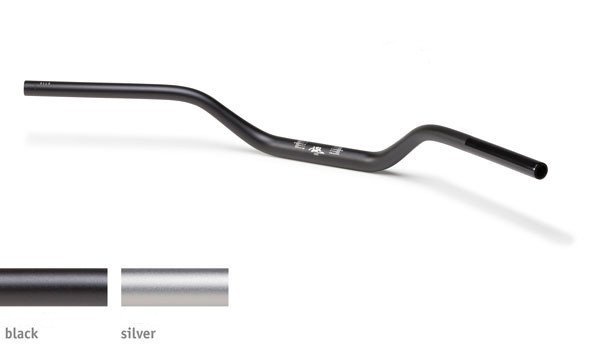

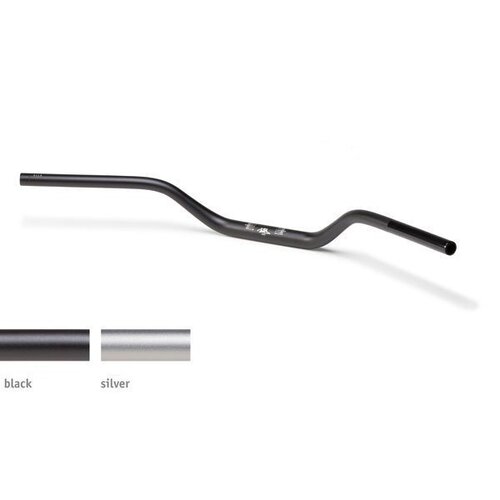

X-Bar aluminium handlebars from LSL - 28.6mm Ø in the clamping area / 22.2mm Ø in the grip area

LSL stands for outstanding handlebar quality.
This is due to the company's own selection of materials and material treatment as well as the manufacturing quality of the handlebars, which has been optimised over decades.
The X-Bar handlebars impress with twice the bending stiffness of standard handlebars.
The basis for this exceptional stability of the handlebars is the large diameter in the clamping area and the even, tapered transition to the grip area.
The handlebars bounce less and offer more reserves under extreme loads.

The diameter of the handlebars is 28.6 mm in the clamping area and tapers to 22.2 mm towards the grip tube.
The wall thickness at the handlebar ends is 4 mm (inner diameter 14 mm). The surface is matt bead-blasted or high-gloss polished and available in up to four anodised colours, depending on the handlebar type.

In addition, we also offer a version with carbon fibre coating.
As already known in the high-tech bicycle sector, LSL now also offers a version of the X-Bar handlebar with genuine carbon fibre coating.
In this case, the aluminium tube is covered with a carbon fibre tube. This sandwich construction achieves a further reduction in weight with the same handlebar stiffness.
The manufacturing process involves absolute precision work. This is the only way to comply with the required tolerances of a motorbike handlebar.
The assembly of these handlebars must be carried out with great care so that the transparent top layer of the carbon fibre material is not damaged.

The handlebars are supplied without drill holes for the anti-rotation lock of the switch fittings.
In order to optimise the position of the drill holes from the standard handlebars, we recommend using an LSL drilling template.

All LSL handlebars are supplied with ABE.
The model range is huge and is expanded every year with new entries.
The ABE reliably documents which handlebar type fits and is approved for your motorbike.
As a rule, the assignments in the ABE are without conditions.
However, there are also exceptions.
For example, LSL offers handlebar mounts for many models. For example, LSL offers handlebar mounts for many models, with which you can also mount one of the X-Bar handlebars on a motorbike with a standard 22.2 mm mount.
So take a look at the entry for your motorbike in the ABE.
If you cannot find your vehicle in the ABE, the ABE can be used as an accompanying document for an individual approval.

Scope of delivery: 1 piece

Care instructions:
• Only use acid- and alkali-free cleaner for all handlebars and their surface variants!
• Never clean in direct sunlight and do not allow the cleaner to dry out.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles, etc., and wipe off any dripping immediately with a clean cloth. Avoid contact with brake fluid, oil, fuel, polishing pastes with abrasive particles, etc., and wipe up any dripping immediately with a soft cloth.
• Before using cleaning agents, test their compatibility on an inconspicuous area!
• No guarantee or warranty is given for improper cleaning and care.
