Motone Plug And Play Wiring Harness Adapter | For Rear Mudguard Mount Indicators

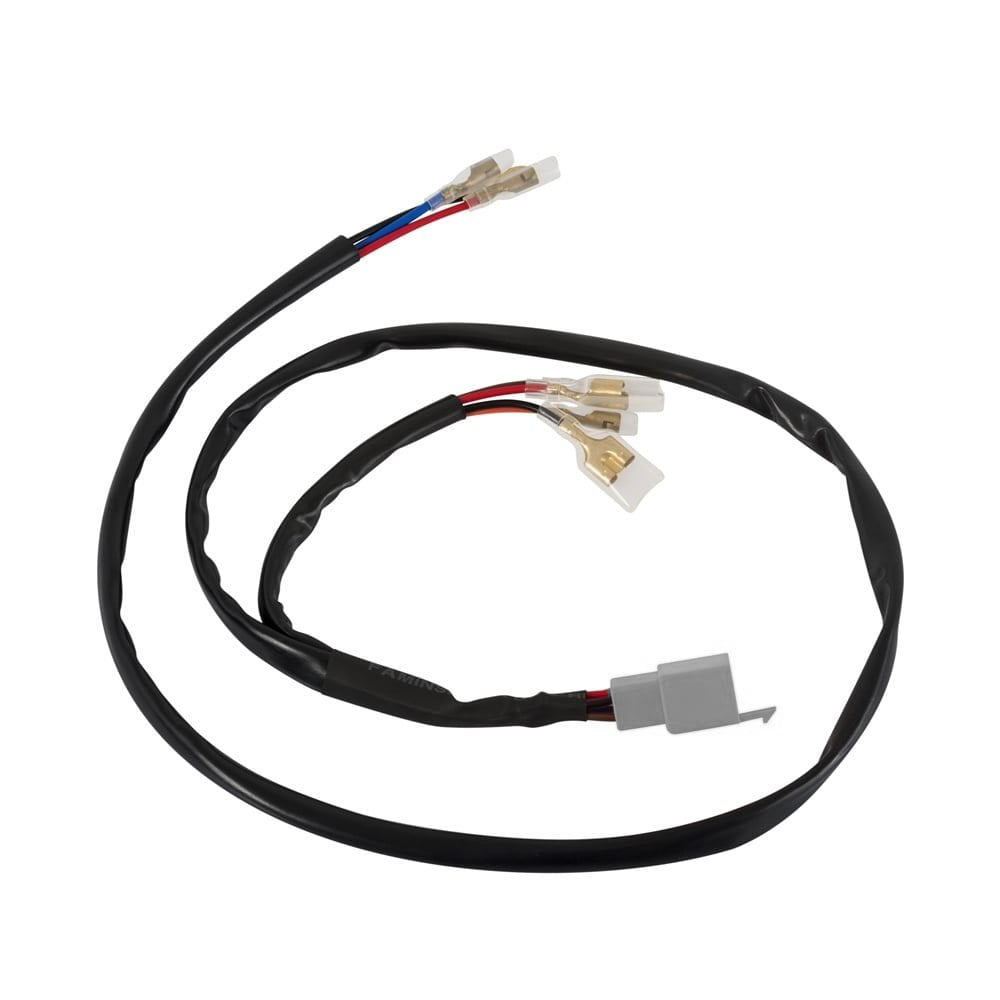

This Motone Plug And Play Wiring Harness Adapter saves you from having to splice the OEM cables. Plug and play using bullet/spade connectors, as shown. It is long enough to accommodate custom tail lights in the stock position as well as further forward on the tail tidy. It is designed to place turn signal indicators on the shock mount, beneath the seat, or on the rear mudguard.

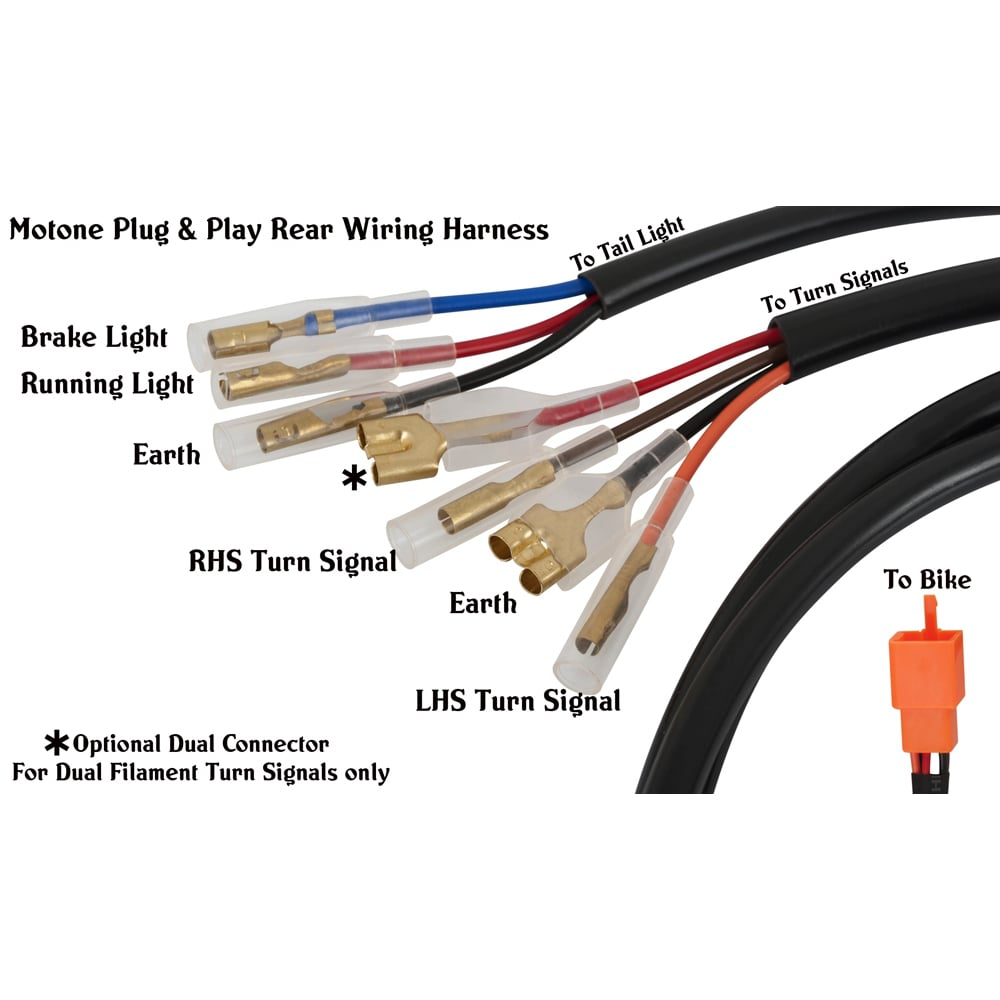

Wired as follows:

• Long Red is running light and long.
• Blue indicates brake lights,
• Black represents earth.
• Orange is a left indicator.
• Brown is the right indicator.
• Red wire double connector - This is for turn signals that have dual filament with three cables (so they can operate as both running lights and turn signals) - Many turn signals do not have this functionality, so using this connector is optional.

Compatibility:

• ALL YEARS HINCKLEY BONNEVILLE T100/SE/SCRAMBLER/THRUXTON
• 2001-2015 Present - Fits both CARB and EFI bikes.
