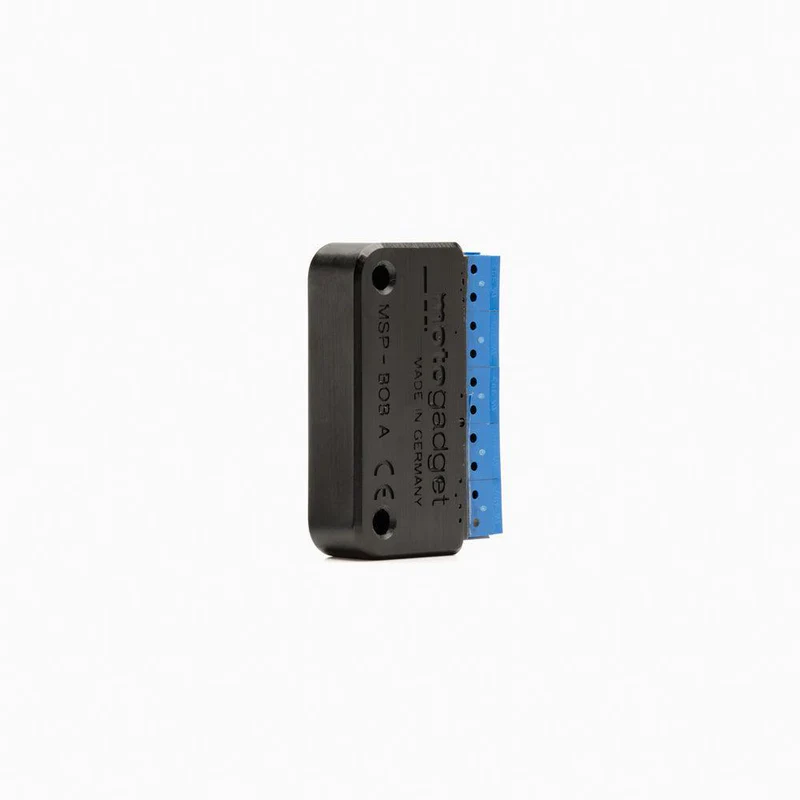

The signal cables for the indicator lights in the motoscope pro are connected to the msp Breakout Box A. Convenient screw terminals make connection work child's play.

Small dimensions allow the numerous cables and the box to be hidden somewhere on the vehicle. Only a single cable for signal transmission is then required between the box and the motoscope Pro (mo-Bus).

The breakout box is potted watertight and insensitive to vibration.

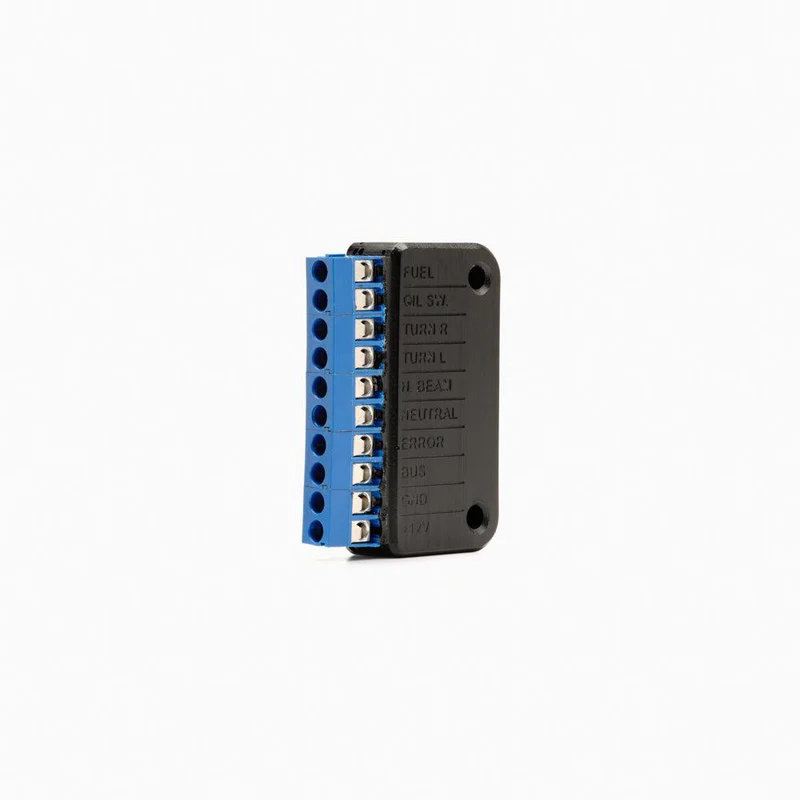

Dimensions (LxWxH): 26 x 39 x 10 mm, inputs for tank capacity / reserve, oil pressure switch, right turn signal, left turn signal, high beam, neutral, engine warning lamp
