Solar cell specially developed for the bike. Attach it to the bike or to the roof of the shed (garage door is also possible). For convenience, make a connector on the battery. Park the bike, connect the plug and the sun will do the rest of the work. It will keep track of the battery without the need for power. The battery remains optimal and will never run out. This is highly recommended! In other areas, for example in sailing, they already make frequent use of this.
Working method:
the device tests the invading solar energy
from 1 volt onwards, the smart system 'decides' on an impulse or duration charge and automatically ensures the fastest charging.
Maintenance mode: continues on the next day if the battery has stopped charging at night otherwise the program will return to OPTIMALISING mode.
charging indication every 3 seconds
ready-to-use indicator for STD and high performance AGM batteries
consumes less than 0.5 mA in monitoring mode
automatically switches to "Charging" mode when the sun's intensity is sufficient
Mounting:
The OptiMate charge controller can be placed close to the vehicle or battery for easy tracking of charging and maintenance progress.
The Solar Panel must be mounted and positioned in such a way that direct sunlight can penetrate it.
Dimensions: 32.5 x 29.2 x 2.6 cm

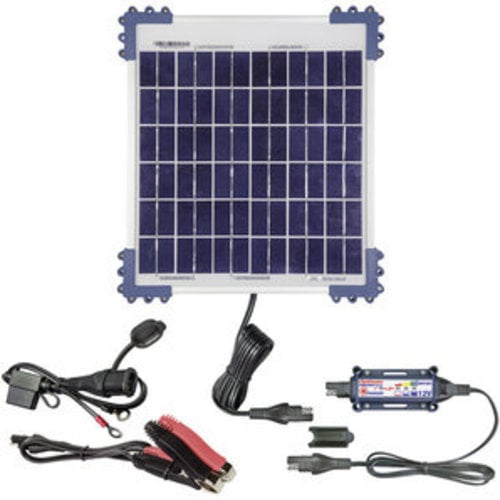

Solar panel:
Power: 10 watts (max.)
Voltage: 12 V nominal, 22 V maximum
Application: outdoor and indoor
Design: waterproof aluminium frame with 4 mounting brackets, output cable 200 cm with SAE plug-in connector
OptiMate charge/monitoring controller properties:
Charging current:
0.83 A of the 10 W panel (max. average current), 3-5 A pulse current
Application: Indoor/outdoor (lowest temperature: -20°C)
Energy saving mode: starts with low 1V voltage
suitable for: STD, AGM and GEL-12V batteries with 2-240 Ah
Input: 15 to 22 V
Design: Waterproof load control housing with mounting holes and loops (for Velcro or zipper). SAE inlet connection for solar panel and 100 cm output cable, which is connected to the battery with the supplied waterproof battery cable and the standard battery clamp set.
