Acewell 2853 AP Speedo with Chrome Housing. The ACE-2853 digital speedometer from Acewell is ADR approved and road legal for passenger vehicles and motorcycles in Australia and New Zealand. The ability to flush mount..... Per saperne de piu...

Descrizione

Acewell 2853 AP Speedo with Chome Housing. The ACE-2853 digital speedometer from Acewell is ADR approved and road legal for passenger vehicles and motorcycles in Australia and New Zealand. The ability to flush mount the 2853 makes it very popular for custom bike builders.

The multi-function LCD display illuminates via a backlit blue screen displaying both speed and RPMs in digital format. It has the ability to store a trip odometer as well as a total odometer. It's 100% waterproof, shock resistant up to 8G's of shock (perfect for these old bikes) and even has a clock! It even has support for factory indicators like blinkers, oil, neutral, etc.

Features:
- WITH HOUSING. Please choose chrome or black
- 100% Waterproof
- Backlit LCD screen, easy to read
- Digital tachometer up to 19,900 RPM
- Built-in RPM shift warning
- Fuel gauge
- Hour meter and Odometer readings stored in internal memory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

NOTE: the background colour is white/blue instead of bright blue.

MANUAL (CLICK)

PS: More info underneath the video

Functions:
- Digital Tachometer 100-19,900 RPM
- Bar graphic Tachometer 500-12,000 RPM
- Speedometer 2.4-399 km/h
- Max Speed 2.4-399 km/h
- Average speed 2.4-399 km/h
- Trip Meter (1 & 2) 0-999 km
- Odometer 0-999,999 km
- Clock 12 or 24 hour option
- Hour Meter 1 & 2 0-99 hrs
- Total Hours 0-9999 hours
- Bar Fuel Meter 0-7 bars

Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

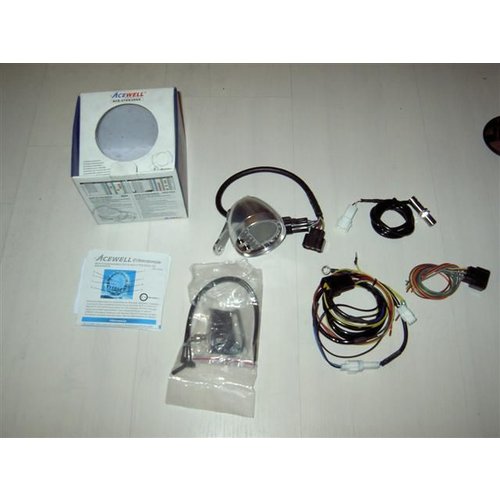

Kit Includes:
- Speedometer head unit
- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)
- Loom extension
- Speed sensor kit with two magnetic bolts

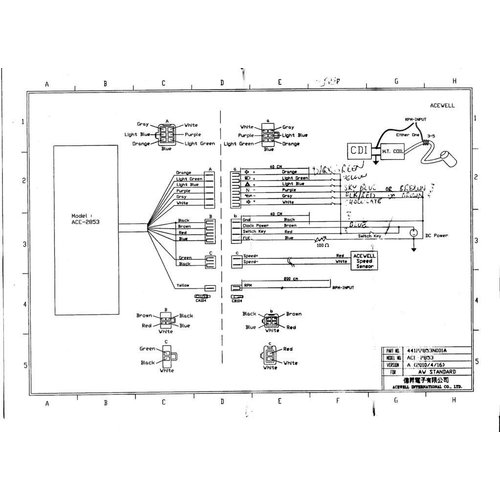

- Wiring diagram

Dimensions: 72 mm dia x 43 mm deep

Easy Installation

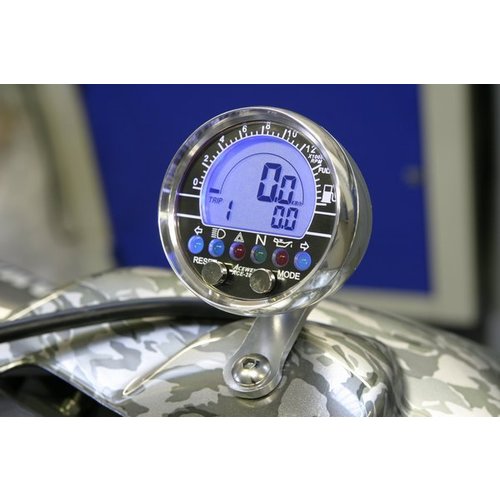

The speedo can be flush mounted or installed using the supplied mounting bracket.

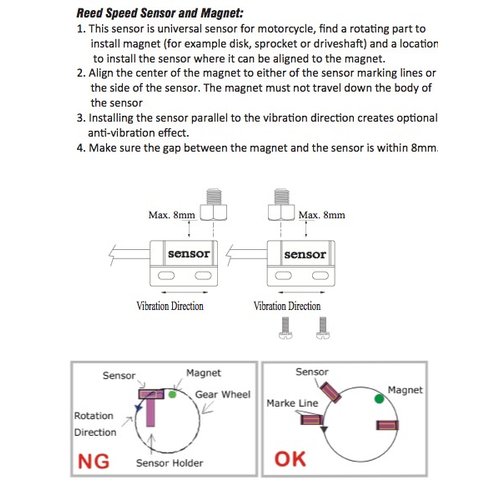

The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For bikes, simple replace a bolt in your front disc rotor with the included magnetic bolt, and align the reed switch with the magnet. Then program the tyre circumference into the Acewell. That will calculate speed, trip, and odometer readings. For cars, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts.
